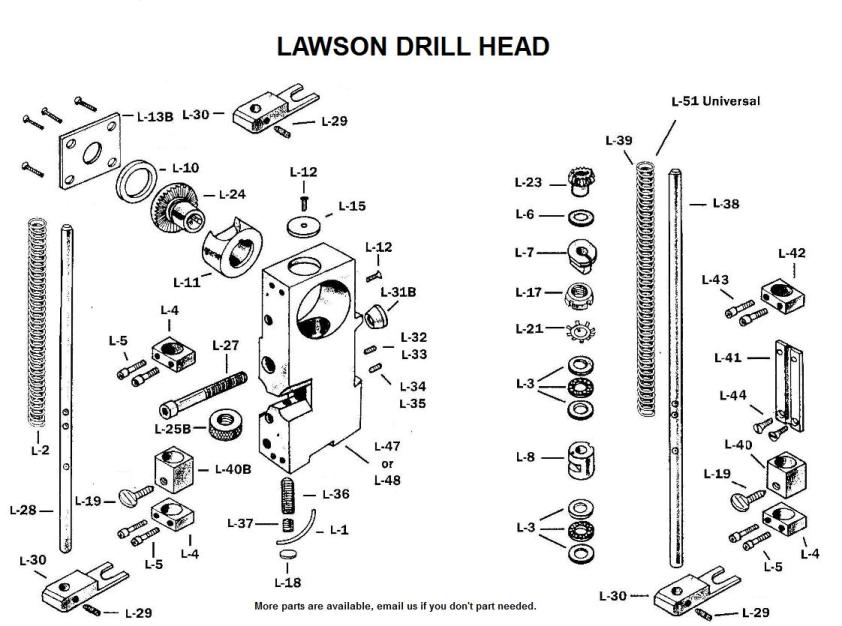

Drill Head & Parts
Our Part # Item # Description Price Quantity
7220102M L-1 Grease Wicking , (A7461) Quantity 1 $5.75
7220104M L-2 Pressure Foot Spring (Short), (B1044) Quantity 1 $12.50
7220106M L-3 Thrust Bearing, (B1289) Quantity 2 $33.10
7220108M L-4 Pressure Foot Block, (B2507) Quantity 1 $36.00
7220110M L-5 # 8 - 32 x 3/4" Socket Head Screw Quantity 2 $0.85
7220112M L-6 Thrust Washer, (B2509) Quantity 1 $15.80
7220114M L-7 Top Bronze Bushing (B2511) Quantity 1 $36.00
7220116M L-7E Top Bronze Bushing (1" Bore-Needle Brg Head) Quantity 1 $37.45
7220118M L-8 Adjusting Sleeve (B2512) Quantity 1 $42.85
7220120M L-8E Adjusting Sleeve (1" Bore-Needle Brg Head) Quantity 1 $43.83
7220122M L-9 3/8" Expansion Plug (Not Pictured) (A2812) Quantity 1 $1.25
7220124M L-10 Thrust Washer, (B2518) Quantity 1 $9.95
7220158M L-11 Bushing (B2519) Quantity 1 $80.00
7220128M L-12 #6 - 32 x 1/2" Flathead Screw Quantity 1 $0.75
7220132M L-13B Thrust Plate, (B2521) Quantity 1 $25.70
7220134M L-14 #10 - 24 x 3/8" Flathead Machine Screw Quantity 4 $0.75
7220136M L-15 Top Plug, (B2801) Quantity 1 $5.90
7220138M L-16 Alemite Grease Fitting ( Not Pictured) , (A4293) Quantity 3 $6.65
7220140M L-17 Locknut, (B2822) Quantity 1 $6.70
7220142M L-18 Aluminum Plug, (B2841) Quantity 1 $1.50
7220144M L-19 Thumb Screw, (B2843) Quantity 1 $5.13
7220146M L-20 Spring, (B2857) Quantity 1 $4.78
7220148M L-21 Lock washer, (B3270) Quantity 1 $4.33
7220150M L-22 1/8 Ball, (B3280) Quantity 1 $0.75
7220152M L-23 Pinion, (B6254) Quantity 1 $41.85
7220028M L-24 Bevel Gear, (B6255) Quantity 1 $84.00
7220156M L-25A Adjusting Knob(Old Style), (A2513) Quantity 1 $41.83
7220151M L-25B Adjusting Knob, (B6586) Quantity 1 $41.83
7220013M L-26 Bevel Gear Key, (B6603) Quantity 1 $9.01
7220009M L-27A GIB Screw (Older Style) Quantity 1 $3.30
7220164M L-27B GIB Screw, (B6627) Quantity 1 $4.40
7220173M L-28 Pressure Foot Rod - Short, (B7038) Quantity 1 $13.21
7220175M L-30E Pressure Foot with Air Hole Quantity 1 $50.65
7221074M L-31A Wedge GIB, (B6744) Quantity 1 $38.56
7220004M L-31B Brass GIB (B7771) Quantity 1 $20.68
7220020M L-32 #10 - 24 x 1/4 Socket Set Screw Quantity 1 $0.67
7220178M L-33 #10 - 24 x 1/2 Socket Set Screw Quantity 1 $0.75
7220174M L-34 1/4 - 20 x 1/2" Half Dog Point Set Screw Quantity 1 $0.75
7220171M L-35 1/4 - 20x1/4" Socket Set Screw Quantity 1 $0.75
7220176M L-36 3/8-24x 1-1/2 Cup Point Socket Set Screw Quantity 1 $2.20
7220177M L-37 3/8 - 24 x 1/2 Cup Point Socket Set Screw Quantity 1 $0.75
7220191M L-38 Pressure Foot Rod (long), (B7940),Quantity 1 $13.60
7220190M L-39 Pressure Foot Spring ( Long), (B7947) Quantity 1 $11.75
7220192M L-40A Pressure Foot Stop with Cutout, (A2503) Quantity 1 $35.96
7220194M L-40B Pressure Foot Stop, (B7951) Quantity 1 $33.05
7220196M L-41 Extension Plate , (B8179) Quantity 1 $36.00
7220198M L-42 Upper Block, (B8180) Quantity 1 $33.05
7220012M L-43 #8 - 32 x 1/2 Socket Head Cap Screw Quantity 2 $0.55
7220016M L-44 #8 - 32 x 3/8 Socket Flathead Screw Quantity 2 $0.67
7220204M L-45 P.F. Rod for Air Attachment(12 3/4") Quantity 1 $26.45
7220168M L-46 Collet Wrench, (B11092) Quantity 1 $48.25
7220208M L-47 Right Hand Housing Quantity 1 $660.35
7220210M L-48 Left Hand Housing Quantity 1 $660.35
7220100M L-49 Complete Head Assembly Quantity 1 $1,195.62
