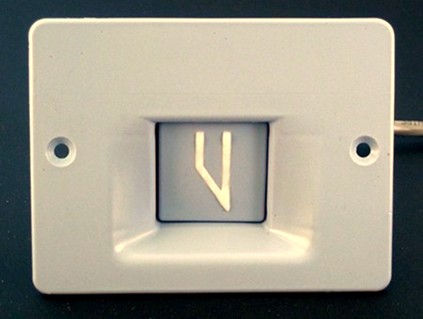

Polar Cut Switch

This cut button or cut switch is used on the front of the table on many Polar paper cutters (027293).


This is an aftermarket switch which is a direct replacement for most 4 pin and 5 pin cut switches.


The connector pins are gold plated for long life.


The switch and connector cable are pre-wired for a direct replacement.


The internal switch components are a Moeller M22 modular switch assembly which is Made in Germany. (Now being made by Eaton since they were bought out.)


The face measures 150mm (5-7/8") wide by 94mm (3-11/16") tall.

The 5mm diameter mounting holes in the face are 103mm (4-1/16") apart.

Also interchanges with (014755, 014222, and 017325 CS-500)
