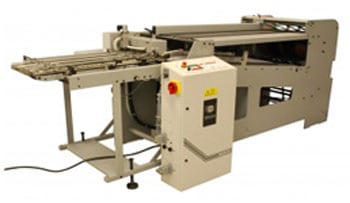

BAUM 20 ICF

Product Summary:

The Baum 20 ICF is an Independent continuous feeder that provides the capability for non-stop continuous feeding of sheets onto another. The Baum 20 ICF also includes a precision register table. This machine is installed in a fixed position due to the larger size of the machine.

Features:

BAUM iFold tutorial standard
Built-in Batch Counter with variable batch
Touch Screen control panel with color pictographs
Built-in Total Counter
Diagnostic Message Display
AC Inverter drive
Exclusive Dual Front Blow Bars
Double Sheet detector with feeder stop and diagnostic error display
Registration table with sheet guide standard
Optical lead edge sensor
One-sheet test mode

Specifications:

Maximum Sheet Size: 20.5 x 33 in. (52 x 84 cm)
Maximum Sheet Size: 20.5 in. wide x 33 in. long (52.07 cm x 84 cm)
Minimum Sheet Size: 4 in. wide x 6 in. long (10.16 cm x 15.24 cm)
Speed infinite variable from 0-8200 in./min. (0-203 m/min)
Electrics: 220/1/60, 220/1/50, 220/3/60, 220/3/50, or 380-415/3/50
Metric/inch scales

Our Item #: BAUM_20_ICF
