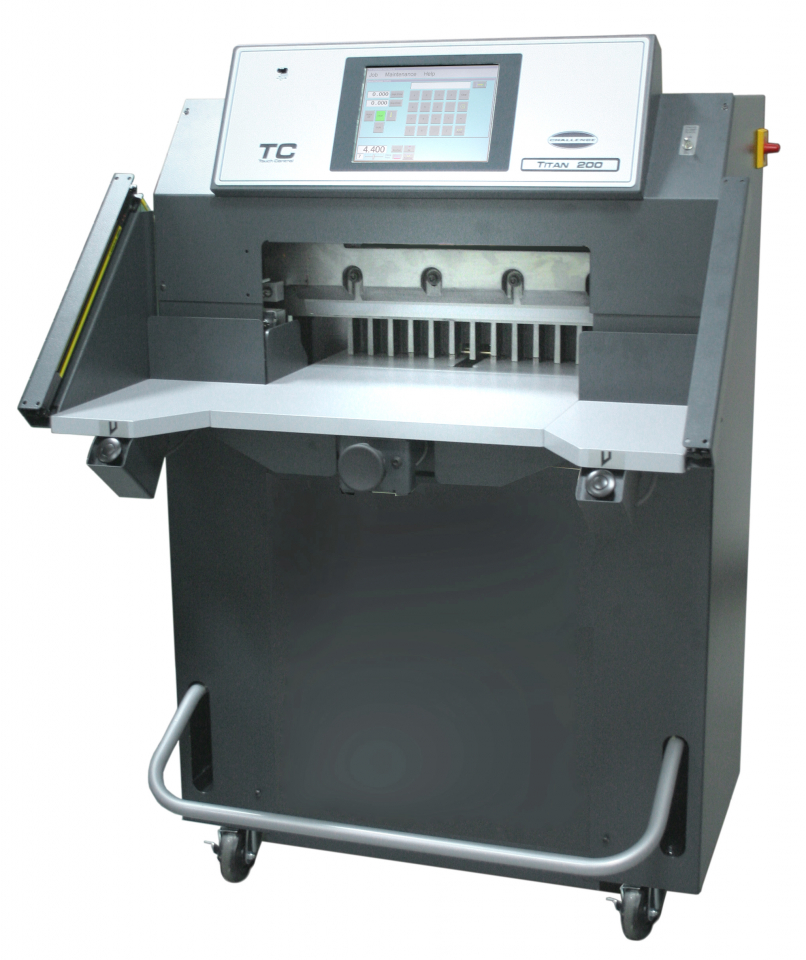

Challenge Titan 200 TC

    Challenge Titan 200 TC

    Product Summary:


    With today’s digital print market placing great demands on your business, some decisions can be difficult. Investments in cutting-edge wide format, inkjet, and digital print engines ensure you meet your customer’s diverse needs, but there are so many choices! When it comes to choosing your next paper cutter, this one is easy… step up to a Titan 200 TC! The Titan 200 continues the Challenge excellence of innovation and strength we’ve become famous for since 1870. The Titan 200 is based on a solid cast iron and steel construction for maximum durability. UHMW gib surfaces, LED line lights, and a one-inch thick solid tool aluminum table require virtually no maintenance for years of trouble-free operation. The intuitive menu-driven controller allows variable mode data entry with up to 99 jobs / 9,801 total cut position storage. The optional electronic clamp pressure control minimizes waste. Machine self-diagnostics and error indication walks the operator through any potential difficulties. The Titan 200 meets the toughest safety standards in the industry today. Light-safety curtains, enclosed rear table, two-hand cut buttons, and knife safety latch contribute to our UL and CE certifications. Proudly manufactured in the USA, The Titan 200 continues our legacy of providing… assurance you made the right decision.

    Machine Features

    Fully hydraulic cutting and clamping
    Solid cast iron and steel construction ensure years of trouble-free operation
    Solid 1-inch thick tool grade aluminum table offers the strong work surface required in production environments
    Bright red LED line light is easy to see and needs no future replacement
    Optional electronic clamp pressure adjustment
    Fully programmable controller offers intuitive operation and up to 9,801 total cut position storage


    General

    Maximum Cutting Width20" / 50.8cm
    Minimum Cut w/o False Clamp Plate1/2" / 13mm
    Minimum Cut w/ False Clamp Plate1-7/8" / 48cm
    Maximum Cut Depth20" / 50.8cm
    Clamp Opening w/o False Clamp Plate3-1/4" / 8.3cm
    Clamp Opening w/ False Clamp Plate3" / 7.6cm
    Clamping MethodHydraulic and Manual
    Backgauge ControlMotor Powered

    Dimensions

    Table Space (in front of knife)15-1/4" / 39cm
    Table Space (behind knife)20" / 51cm
    Total Height53" 135cm
    Total Width36" / 91cm
    Total Length49-5/8" / 126cm
    Net Weight (approximate)795 lbs / 361 kg
    Shipping Weight (approximate)920 lbs / 418 kg

    Electrical

    Motor TypeStandard Motor
    Hydraulic Pump1-1/2 H.P. One Phase, 60 Hz, AC
    Power option 1230 Volts, 12 Amps (service size 15 Amps)
    Power noteRequires receptacle type: NEMA 6-15R or 6-20R



    Our Item #: Challenge_Titan200TC
