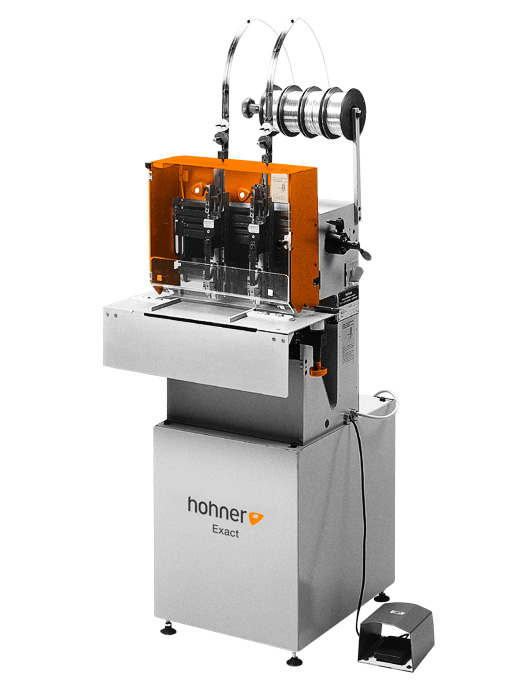

Hohner Exact

The Flexible Mini

This multi head wire stitching machine for mixed applications is characterized by:

Equipped as standard with Universal 52/8S stitching heads. It is possible to fit up to four of these heads to the machine.
Standard and loop stitching or mixed applications
Perfectly suitable as a stand-alone machine, for the completion of a whole system and/or test unit
Maximum stitching thickness 8 mm for standard stitching
Easily convertible stitching table from pad stitching (flat) to brochures (saddle)
Many varieties of exchange parts sets for a wide range of staple options are available to fit at a later stage.
Simultaneous and central adjustment of stitching thickness and wire length of all heads with only one lever
A backstop and two side lays are fully adjustable for accurate and easy positioning of the staples.
Extremely easy for the operator to change from one format to another.
Perfectly suitable for small production runs, sample stiching or off-line applications
Maximum stitching per head: 206 staples per minute
Table size: 550 x 280 mm

Technical Information

EXACT
Capability and formats
Mechanic cycles per minute	206
Stitching table size [mm]	550 x 280
Working height [mm]	845
Throat depth from clincher box to machine body [mm] for pad stitching	173
Throat depth from clincher box to machine body [mm] for saddle stitching	340
Minimum staple distance [mm]	52 – 74
Maximum staple distance [mm]	330
Narrow Stitching heads
Maximum distance between staples	330
Stitching head (standard)	52/8-S
Stitching head (optional)	43/6-S
Maximum number of stitching heads	4
Crown width [mm]	14
Stitching wire
Round wire (standard)	No. 24 – 28* (Ø 0,60 – 0,40 mm)
Wire for loop stitching on request *wire sizes according to european norm Other wire types on request
Max. stitching thickness
Clinched staple [mm]	8
Loop stitching [mm] (Optional)	3
Exchange parts for loop stitching up to [mm]	depending on stitching head
All indications are depending on paper type and quality
Options
Single cycle operated by foot switch	✓
Type of stitching head	43/6-S
Exchange parts for other types of wire	✓
Exchange parts for loop stitching kit [mm]	Ø 6.0, 8.0
Dimensions
Machine height [mm]	1600
Floor space required [in mm LxWxH]	744 x 550 x 1564
Maximum number of work stations	1
Noise emmission [dB(A)]	< 82
Power requirements
Power [kW]	0,37
Tension [V]	230/400
Frequency [Hz]	50/3~*
*Other tension types on request
Weight
Net weight [kg]	146
Gross weight [kg]	184
Packaging dimensions [in mm LxWxH]	1030 x 800 x 1540
