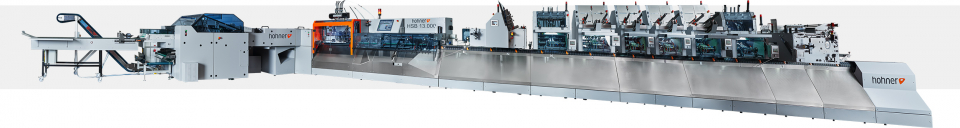

Hohner HSB 13.000

Product Summary:

High-technology for the future. The HSB 13.000 is our most forward thinking solution, requiring a minimum amount of personnel, to compliment your efficient workflow in the saddle binding element of you Bindery with shorter set-up times. Totally automated, if desired - even down to the compensating sticker - the HSB 13.000 can, like no other, be changed from one job to another, from small formats up to a maximum DIN A3 in a matter of minutes.

Equipment variants

This is especially relevant in a changing market where production runs are becoming shorter but the products are becoming more complicated. Intelligent programming ensures the automated repetition of all components and settings in the system. The new drive technology combined with “Motion-Control”, a special automation software, represents a complete state of the art drive system. This guarantees that tasks which have been run once can be repeated at any time with a simple push of a button because all components automatically reset to their previous positions. Your demands of top quality machinery and high efficiency together with Hohner’s renowned ease of operation are perfectly combined in our customized HSB 13.000.

The advantages at a glance

Fully automatic adjustment of all components and assemblies (including stitching heads and all essential operating functions)
Easy menu navigation as well as pleasant and appealing visualization via user-friendly touchscreens for controlling and monitoring all relevant components
User-friendly setting points
Ergonomic feeding height
Minimum requirements in terms of personnel
Automatic format setting
Maximum precut format: 475 x 325 or 425 x 350 mm (max. formats cannot be combined)
Maximum cut format: 470 x 320-345 mm (max. formats cannot be combined)
Sequential on-and-off switching
Integrated, wear-free staple monitoring
Automated central lubrication for minimum maintenance requirements
Motor-driven adjustment in all elements – including stitching heads and clincher boxes
Equipped with technology leader Hohner’s HSS 42/6 narrow stitching heads, which have proven themselves worldwide
Blade connection via a strong frame structure in the trimmer
A total of 12 recirculating ball bushings for high-precision guidance and extremely long blade life
Simple adjustments to the scoring station (positive and negative scoring)
Remote diagnostics option
Modular system with extensive, customizable options for adaptation (various optional expansion possibilities, from a manual feeder to 16 automatic single signature feeders (vertical and horizontal), automatic vertical cover feeder and compact horizontal cover feeder for each feeder position after standard cover feeder (or 18 signature feeders without cover feeder), two-up set-up, 2:1 production, staple monitoring, Hohner compensating stacker and transport system for trim waste)
Speed regulation before idling of the feeders (self-regulating monitoring function)
Electronic handwheel in the trimmer (self-synchronization when leaving set-up mode)
Sequential feeder monitoring
Continuous display of errors and analysis option for each individual machine component
Large graphic touch controls on each individual machine component
Folding sheets can be fed individually during ongoing production (standby function)
It’s not just the main drive system that is equipped with servo drive technology. Even the format-relevant adjustments are implemented via servo drives with the latest technology, which is typical of Hohner. That means that machine availability is as high as possible and automated in a manner that increases the reliability of production in order to greatly limit production disruptions and downtime. These advantages can be clearly seen in our fast set-up and changeover times.
Single manual feeding station

Technical Information HSB 13.000
Thickness capacity of trimmer:	12 mm in single production, When taking out a gutter, thickness is half of the width of the gutter
Maximum stitching thickness:	6 mm (for normal staples), (optional: loop stitching L6 maximum 3 mm and L8 maximum 2 mm)
Trim allowance Trimmer:	50 mm for front trim and head/foot trim (depending on format)
Stitching heads:	up to 6 automatical HOHNER Narrow HSS 42/6 Stitching Heads
Maximum feeder pile length of vertical feeder:	approx. 250 mm
Production speed:	500 - 13.000 products per hour (infinitely variable)
Supply voltage:	400 Volt, 3 Phasen, 50/60 Hz

Additional Options:

Degree of automation consistent due to servo drive technology
Small size achievement
Up to six automated stitching heads
Capture of production data
Remote diagnostics and augmented reality for service (incl. video conferencing capabilities/AR-Smartglasses)
Continuous error display with description - direct detection of the error source
Camera systems (feeder) for quality monitoring (image comparison and barcode)
Inline hole punching and die punching
Economical LED lighting for all feeders
Enhanced operating modes (such as variable suction timing in all feeder designs)
Hohner compensating stacker or other third-party products can be integrated
Service packages
