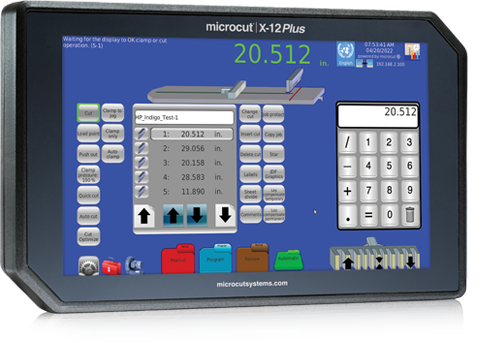

Microcut X12 Plus

We designed the Microcut X-12PLUS to be the most powerful and advanced retrofit system available in the industry, offering a large 12” color touch screen display and automatic cutter programming with Microcip our advanced CIP®/JDF converting software. The Microcut X-12PLUS is designed to fit on any size cutter. The X-12PLUS quickly and efficiently moves the backguage into correct position more accurately than skilled manual operation. A full 12” color touch screen display guides the operator with all operations presented in an intuitive, easyto-understand format. Set up is fast and simple, with no complicated codes to memorize. The system frees the operator from the wasted time and risk of error associated with repetitive data entry. Its ability to automatically program a job while cutting the first lift turns setup time into production time, making automation effective for even two and three lift jobs. The entry and review of programs is quick and easy. Fractions, corrections, additions, or deletions can be easily entered through the keyboard. Non volatile memory insures data is never lost. Many paper cutters already have some form of automatic backgauge control, but may have become difficult and expensive, if not impossible, to maintain. These machines are generally sound mechanically and, with the addition of Microcut X-12PLUS, can quickly and easily be returned to a high level of productivity and reliability for a fraction of the cost of a new machine.

• 12” wide format touch screen display
• Virtually unlimited memory capacity
• USB port for data exchange and software update
• microcip® software for CIP/JDF capability
• microfacts® for data collection
• cutternet® for network compatibility

• 12” wide format touch screen display
• Over 400,000+ cut locations
• Linux® based operating system
• Graphic interface
• Microprocessor-controlled, infinitely variable backgauge drive
• Repeatability of backgauge position to +/-.002 inches (.05 mm)
• Measurements in inches, centimeters, millimeters
• Automatic backgauge return
• Operator-defined inch or metric display
• Program entry or correction, through the touch screen with the backgauge stationary or while cutting the lift
• Barcode reader compatible.
• microfacts® for data collection
• cutternet® for network compatibility
• USB port for data exchange and software updates
• Insertion or deletion of commands from existing programs
• Automatic computation and entry of fractions
• Stock eject
• Non-volatile memory—no batteries required for memory support
• Optional auxiliary controls for front and side air tables
• Speed range: 2 - 25 inches/seconds, both forward and reverse, depending on size and condition of cutter
• Electrical: 85 - 265 VAC, 50/60 Hz @ 1 KVA
• Warranted for one year from date of shipment against defects in parts and workmanship
