Powerful gear drive for the knife
Digital servo drive positioning system for the backgauge
Hydraulic clamp
Stainless steel plated and slot-less cutting table
Cutting table and side tables with air bed
TS computer with 18.5 ” high resolution color touch screen
CIP3 / CIP4 enabled
LED table light and cut line indicator
Built-in knife hoist with setting gauges and knife guard
Self-monitoring safety light barrier
Two-hand cut control
Complete rear table guarding
Overload protection device

Enlarged air side tables
Carbide tipped blades
Lift kit for taller working height
Smart clamp (limited clamping stroke)
Low pressure device (for corrugated and pressure sensitive material)
Barcode scanner
S2C package (Straight To Cut), with bar code scanner and CIP3/4 network connectivity

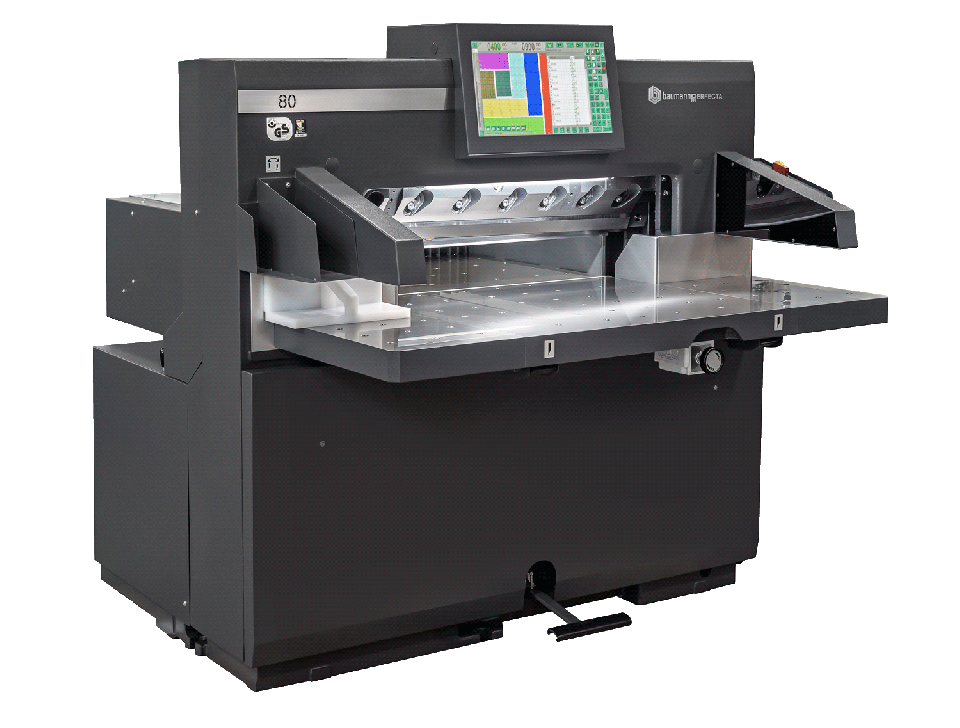

MODEL	BP 80
Cutting Table Width	31.5 " / 800 mm
Feed Height	4.7 " / 120 mm
Useful Rear Table Length	36.2 " / 920 mm
Stainless Steel Air Side Tables	13 " x 20.1 " / 330 mm x 510 mm
Minimum Cut without False Clamp	0.7 " / 18 mm
Minimum Cut with False Clamp	1.9 " / 48 mm
Clamping force	450 - 5620 lb / 2 - 25 kN
